WAFIOS AS41 Spring Coiler Line – 2

Description

FEATURES:
WAFIOS SPRING COILER
MODEL – AS41
WIRE DIAMETER – 1.0 – 3.6mm
OUTSIDE DIAMETER OF SPRING – 10 – 30mm
MAX. LENGTH OF FEED WIRE – 13000mm
FEED SPEEDS – 90 & 75mm/MIN
MAX. OUTPUT AS41 ALONE – 78 SPRING/MIN.
MAX. OUTPUT COMBINED WITH FOA41 EYELET MACHINE – 58 SPRING/MIN.

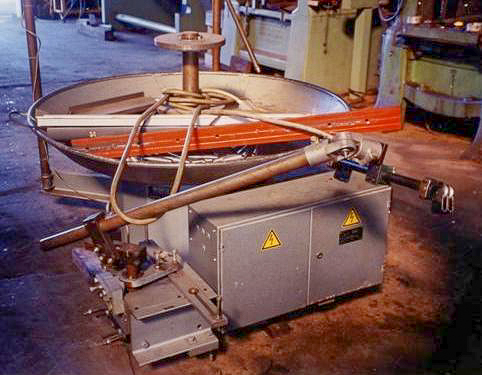

WAFIOS WIRE PAYOFF
MODEL – AHL 41D-M2000
DRIVE – 4KW, 220/240/440/480V, 3PH, 60/50 CYC.
DANCER ARM FOR SPEED CONTROL
LOAD CAPACITY – 1500KG (3300LB)
SUITABLE FOR COILS WITH APPROX. OUTSIDE DIA. OF 850mm (33.5″)
WEIGHT – 750kg (1650LB)

CAGE
BOX OF SPRINGS

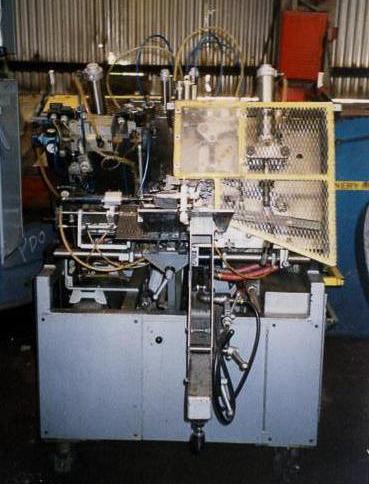

WAFIOS SPRING EYELET MACHINE
MODEL – FOA-41
LENGTH OF SPRING BODY – 1.5mm – 200mm
