Description
FEATURES:
MANUFACTURER: VAUGHN MACHINERY CORP
TYPE: TUBE LEVEL WIND LINE
CAPACITY
MAXIMUM TUBE O.D. – 5/8″ (16mm) O.D.
MINIMUM TUBE O.D. – 1/4″ (6.35mm) O.D.
LINE SPEED – 0 – 500 FPM (152 m/MIN.)

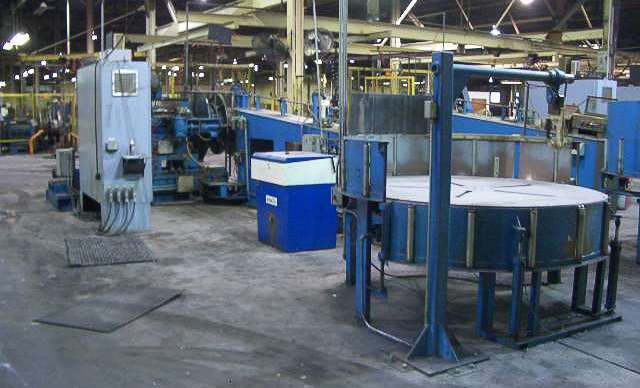

COIL PAYOFF
TYPE – VERTICAL
MAXIMUM COIL O.D. – 7 FT.
COIL I.D. RANGE – 14″- 52″ (355mm- 1320mm) I.D.
EQUIPPED WITH DE-TANGLER
ENTRY COIL GUIDE
ROLL STRAIGHTENER
TYPE – SINGLE PLANE DRIVE
No. OF ROLLS – 7
ROLL DIAMETER – 3″ (76mm) DIA.
ROLL FACE – 1″ (25mm)
CONFIGURATION – VERTICAL
DRIVE MOTOR – 1 HP, 208-230/460 VOLTS, 3.1/3.4 AMPS, 1725 RPM, 3 PHASE, 60 HERTZ

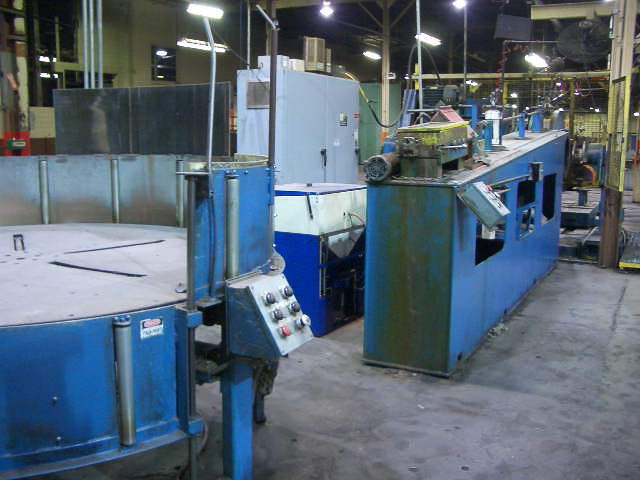

TUBE CLEANING STATION
TYPE – SYSTEM ONE CLEAN FILTER & RECIRCULATING SYSTEM
MAGNETIC ANALYSIS TEST STATION
TESTER TO BE SUPPLIED BY PURCHASER
TUBE GUIDE: 7 FT. (2m) LONG

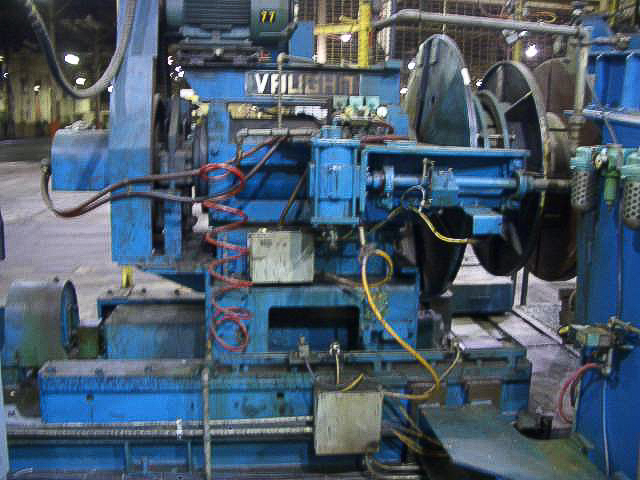

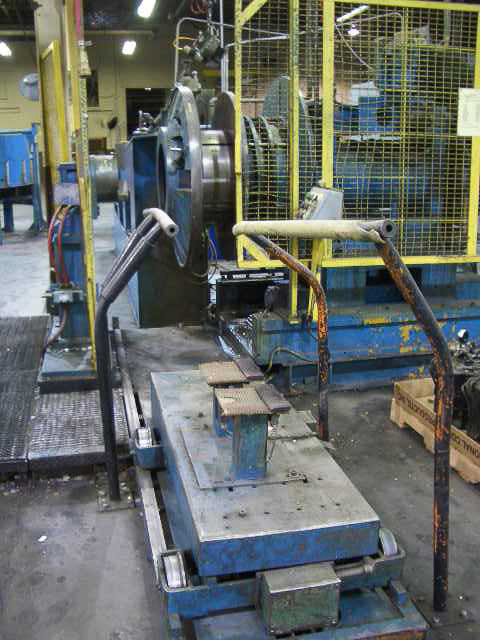

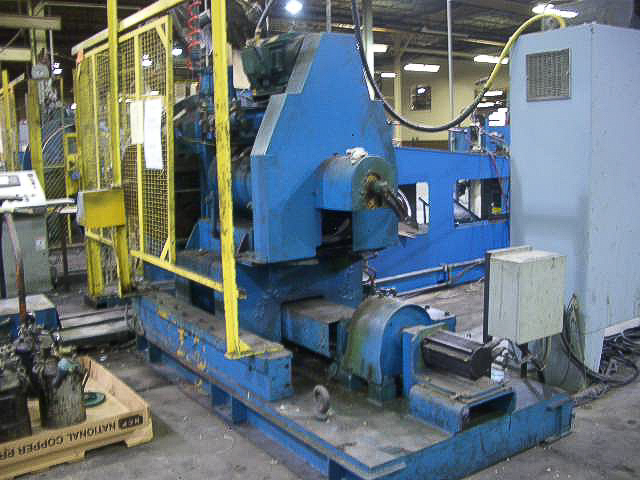

TRAVERSING WINDER
MANUFACTURER – VAUGHN MACHINERY CORP.
SPOOL SIZE – 26″ I.D. x 44″ O.D. x 9 3/4″ TRAVERSE
(660mm I.D. x 1117mm O.D. x 248mm TRAVERSE)
WINDER DRIVE – 30 HP, 1735 RPM, 230/460 VOLTS, 3 PHASE, 60 HERTZ, VARIABLE SPEED
CONTROLS – ALLEN BRADLEY SCR THYRISTOR DRIVE MODEL 1305 W/ALLEN BRADLEY MODEL 1394 DIGITAL SERVO CONTROLLER
TYPE TRAVERSE – MOTORIZED
OPERATOR STATION – ALLEN BRADLEY PANELVIEW 600 TOUCH SCREEN
