MATSUURA VX-1000 5-axis CNC vertical machining center (PRICE REDUCED!)

Description

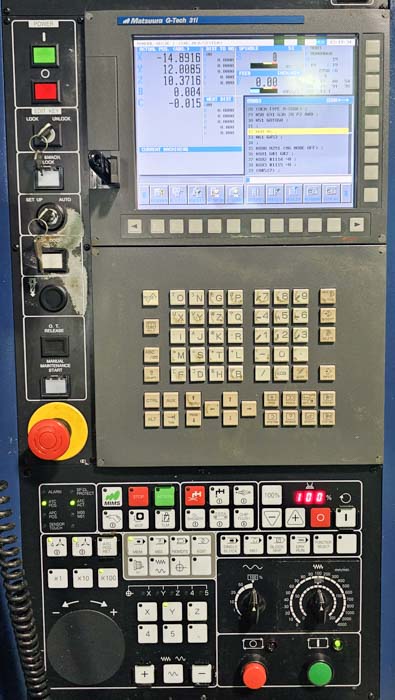

MATSUURA (07-2017) VX-1000 MAXIA 5-axis CNC high speed vertical machining center with MATSUURA G-TECH 31i (FANUC SERIES 31i) CNC control, 47.24” x 23.62” T-slot table, 1,100 lbs. max table loading capacity, travels X-40.15”; Y-24.01”, Z-24.01”, B-140(-30+110) degrees, C-360 degrees, 27.95” max distance spindle nose to table top, spindle speeds to 15,000 rpm, CAT40 spindle taper, 15/22 kw spindle drive motor, 30 station ATC, high pressure through spindle coolant, RENISHAW OMP-40 in-process touch probe, RENISHAW NC-4 non-contact laser tool probe, LNS coolant filtration, uplift chip conveyor, refrigerated spindle chiller, 200v/3ph/60hz, approx. 172”W x 197”L x 120” H floor space requirement, 16,258 lbs. total machine weight, s/n 2000393
